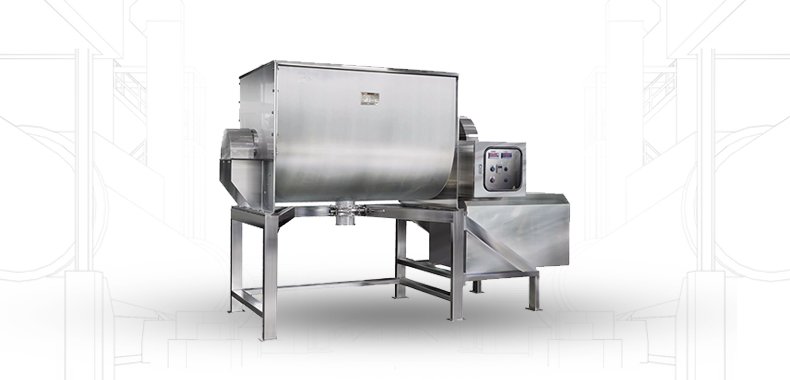

Ribbon Blender

Our Products

Ribbon Blender

At BM Industries, we manufacture high-performance Ribbon Blenders designed for efficient mixing of dry powders, granules, and low-viscosity pastes. Our blenders are ideal for uniform and fast blending in industries such as food, pharmaceuticals, chemicals, and cosmetics.

What is a Ribbon Blender?

A ribbon blender is a horizontal U-shaped mixer with a central shaft fitted with helical ribbons. The ribbons rotate to create a counter-current flow that ensures uniform blending of ingredients with minimal energy consumption.

Key Features

• Robust construction using stainless steel or mild steel
• Efficient mixing with dual helical ribbon design
• Available in batch capacities from 100 liters to 5,000 liters
• Option for heating, cooling, or vacuum operation
• Dust-proof covers for clean and safe operation
• Customizable discharge systems and motor types

Applications

• Dry Powder and Spice Mixing
• Pharmaceutical and Nutraceutical Formulations
• Cosmetics and Personal Care Products
• Chemical and Detergent Blending
• Plastic Masterbatch and Additive Mixing

Customization Options

• Jacketed Design for Heating/Cooling
• Vacuum or Pressure Sealing
• Liquid Spray System Integration
• Variable Speed Drive (VFD)
• PLC-Based Controls for Batch Automation

Quality & Compliance

Each unit is tested for durability and process performance:

• Run Test with Dry Load
• Leak Testing (if jacketed)
• Surface Finish as per GMP/Pharma grade (if required)
• Documentation & Test Certificates (on request)

Why Choose Us?

• 40+ years of experience in mixing equipment
• Tailor-made designs for batch or continuous operation
• Heavy-duty build for long service life
• On-time delivery with technical support

Equipments

• Horizontal Trough with Helical Ribbon Blades
• Shaft with Bearings and Seals
• Top Cover with Safety Grills / Inspection Ports
• Discharge Valve (Butterfly, Slide Gate, or Ball Valve)
• Support Stand or Mounting Skid
• Control Panel with Timer & Speed Control

Design & Construction

• Design: Based on material density and mixing time
• Blade Configuration: Inner and outer ribbon for uniform mixing
• Optional Features: Spray nozzles for liquid addition, jacket for temperature control
• Cleaning: Easy-to-clean design with smooth internal finish
