Reactor Vessel

At BM Industries, we design and manufacture top-quality Reactor Vessels engineered for safe and efficient chemical processing. Our vessels are built to withstand high pressure and temperature conditions, making them ideal for complex industrial reactions in pharmaceuticals, chemicals, food processing, and petrochemicals.

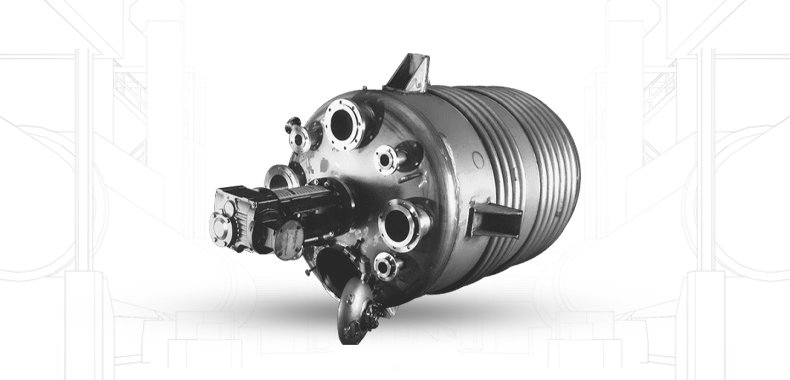

What is a ReactorVessel?

A Reactor vessel is an enclosed container used to carry out chemical reactions under controlled conditions. These vessels are designed to handle thermal, pressure, and corrosive loads involved in various industrial processes.

Key Features

• Manufactured from stainless steel, carbon steel, or special alloys
• Available with jacketed, limpet coil, or agitated configurations
• Supports heating, cooling, and mixing processes
• Custom design as per ASME, IS, or customer specifications
• Capable of handling both batch and continuous processes
• Capacity range: 100 liters to 30,000 liters

Applications

• Chemical Reaction Processes
• Pharmaceutical Synthesis
• Food & Beverage Mixing
• Petrochemical Processing
• Paints, Resins, and Polymer Manufacturing

Customization Options

• Agitator Type: Anchor, Turbine, Helical, Propeller
• Motor & Gearbox Selection
• Jacket/Limpet Coil Design for Heating/Cooling
• Instrumentation Ports, Valves & Sight Glass
• PLC/Automation Integration (on request)

Quality & Compliance

Each Reactor is built and tested to meet stringent quality standards:

• ASME / IS / GMP Compliant
• Radiographic & Ultrasonic Testing
• Hydro & Pneumatic Pressure Testing
• Third-party Certification (if required)

Why Choose Us?

• 40+ years of engineering excellence
• Precision design for complex reactions
• Custom-built to your process needs
• Reliable support and after-sales service

Equipments

• Agitator assembly with mechanical seal or magnetic drive
• Jacketed shell or limpet coil for heating/cooling medium
• Reinforced nozzles for feeding, sampling, venting, and pressure relief
• Top dish or flange-mounted motor with gearbox
• Manhole, sight glass, level gauge, thermowell
• Bottom discharge valve (flush type or ball valve)
• Insulated and cladded body for thermal efficiency (optional)
• Skid or leg-supported structure for easy installation

Design & Construction

• Material of Construction: SS304, SS316, MS, Hastelloy, Alloy 20, or Glass-Lined Steel (GLR)
• Design Pressure: Full vacuum to 40+ bar depending on application
• Design Temperature: -50°C to 350°C with insulation options
• Standards Followed: ASME Section VIII Div. 1, IS 2825, GMP Guidelines
• Agitator Types: Turbine, Anchor, Paddle, Helical, Magnetic (based on mixing need)
• Drive Options: VFD-enabled geared motors, flameproof motors (if required)
• Heating/Cooling: Steam, Hot Oil, Chilled Water, Glycol Jacket or Coil
• Finish: Mirror/Matt internal finish for pharmaceutical use; external finish as per client need
• Mounting: Skid, Legs, Lugs or Frame mounted construction
